Categories: Architecture

Completion: 2014

Place: Toyama

Floor Area: 163㎡

Client: Residence

Partner: KENJI NAWA

2世帯5人家族のための木造2階建て住宅である。家族のくつろぎの場である1F南側のゾーンと、老人夫婦の主な生活の場となる1F北側ゾーンを、FRPグレーチングの床のある2層空間にて、分割している。この2層空間にはトップライト、壁面に開口、屋根裏から1Fのペリメーターゾーンへと空気を循環させるファン、が設置されている。夏には上昇してくる熱気を外部へと逃がし、冬場はトップライトにて温められた空気を、1Fへと循環させるパッシブソーラーとなる。

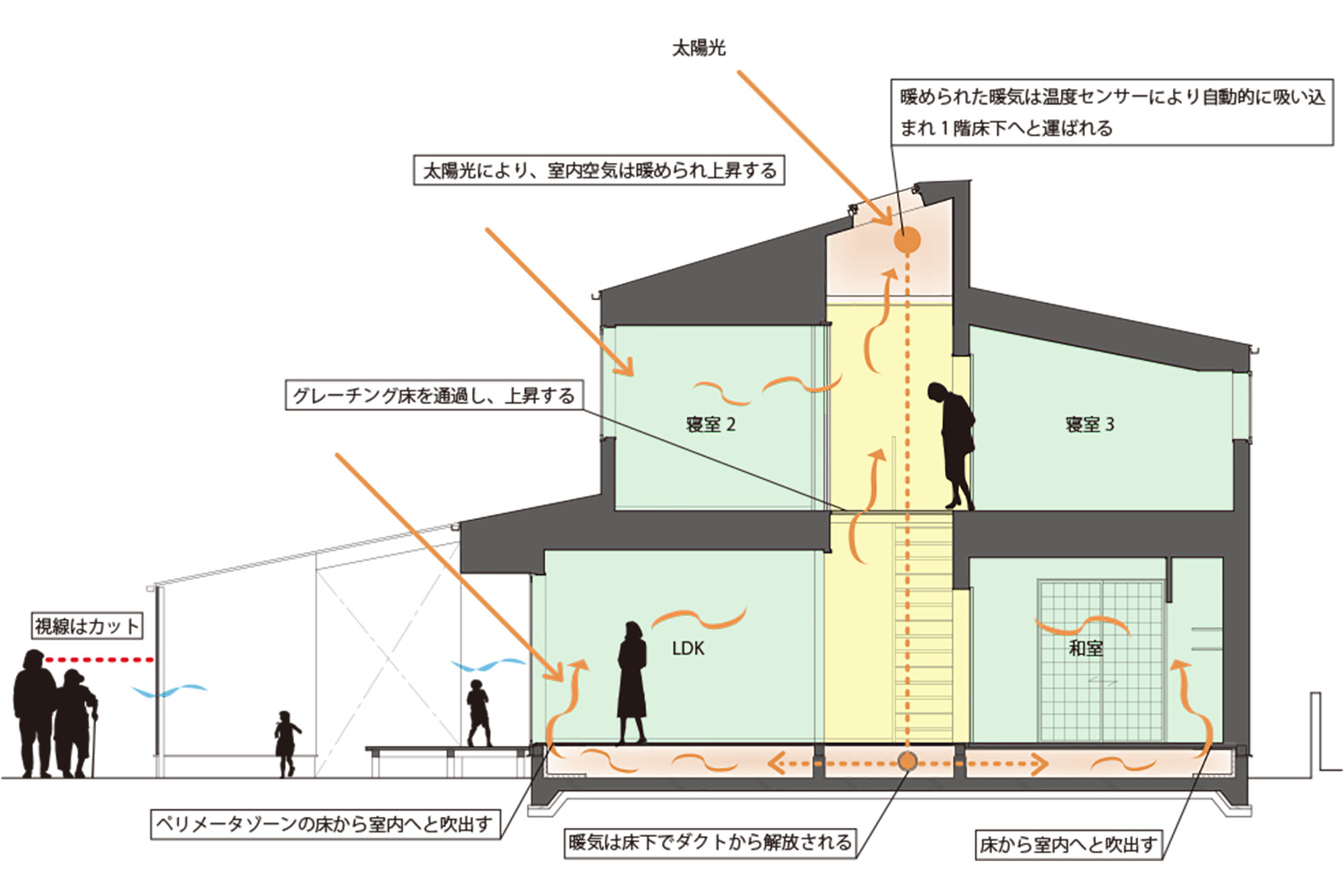

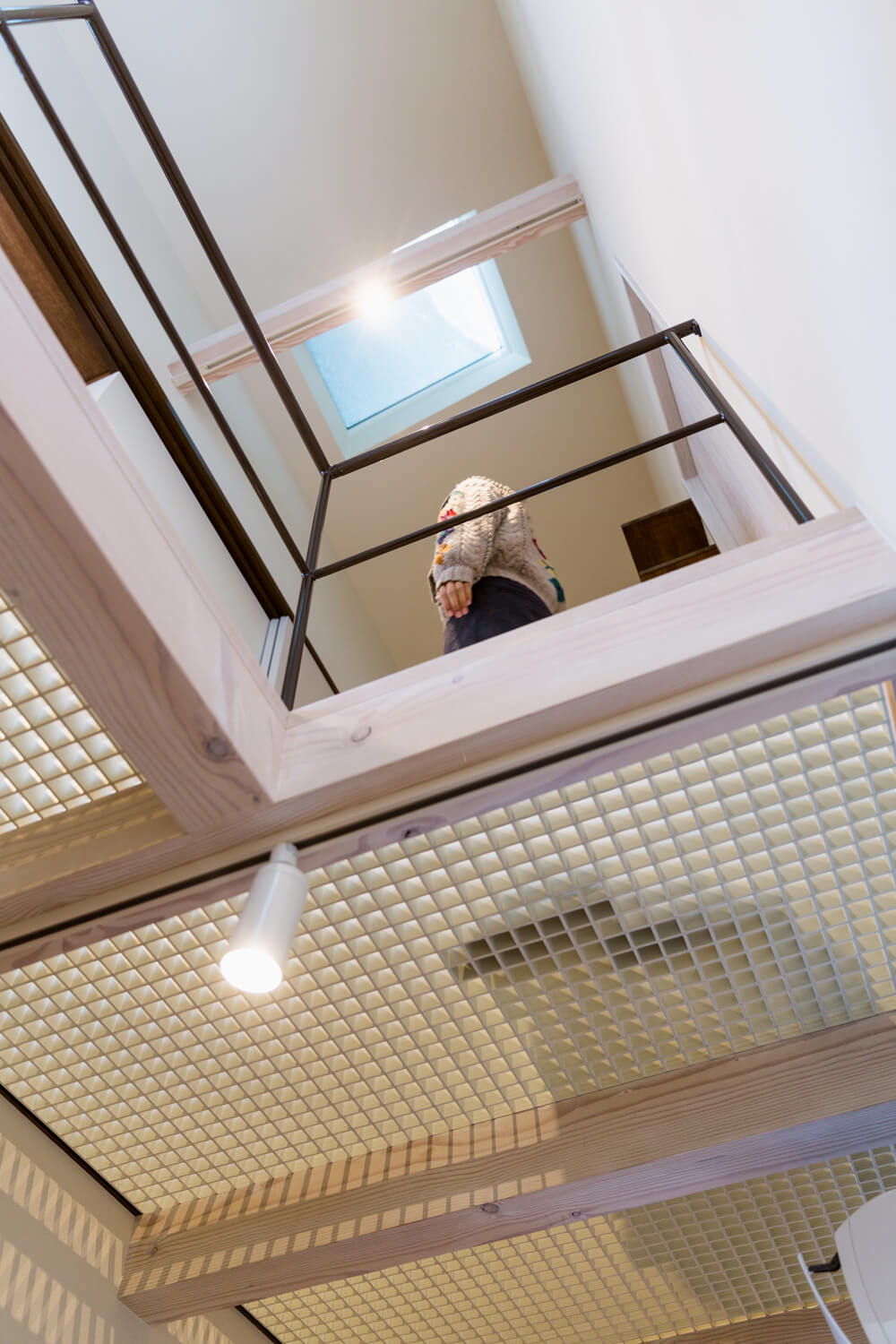

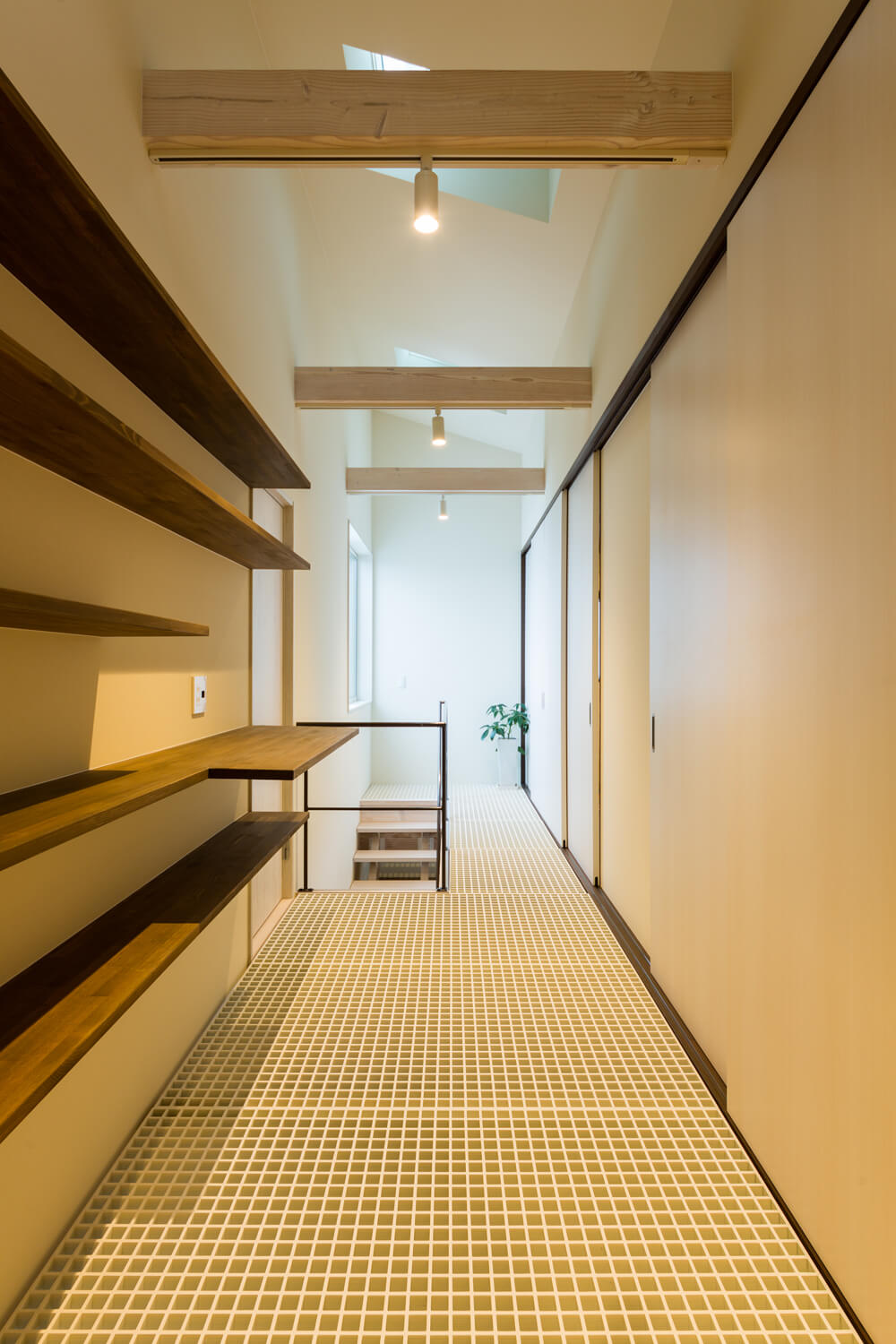

This is a two-storey, wooden residence designed for two households comprising a total of five people. The first floor is divided into two zones: one on the southern side that functions as a relaxation area for the family, and the other on the northern side, comprising the main living area for the grandparents. The two zones are divided by a two-layered space whose flooring is made of FRP grating. This two-layered space is installed with skylights, a movable partition wall, and fans that circulate the air from the loft area down to the first-floor perimeter zone. It functions as a passive zone that allows rising heat to escape outside during the summer, and that circulates air that has been warmed up by the skylights down to the first floor during the winter.
